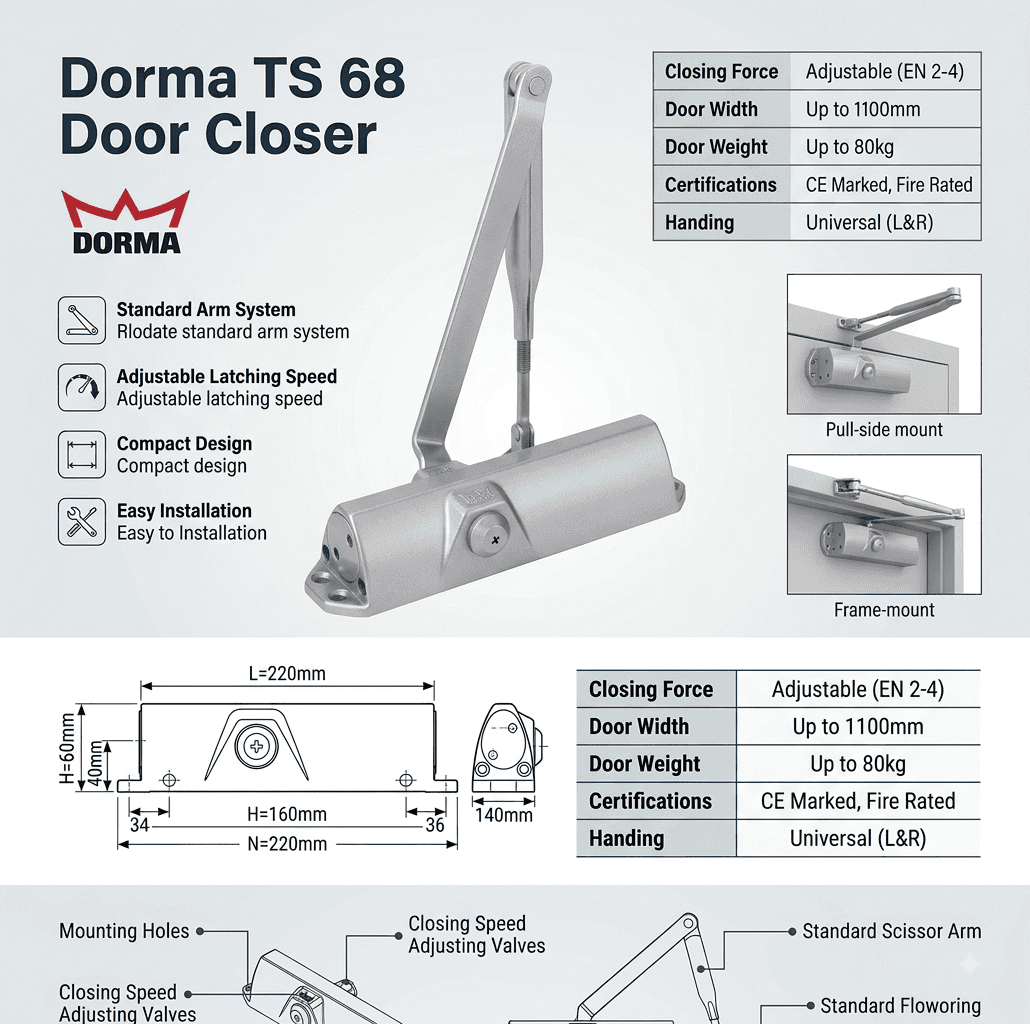

TS 68 Dorma Standard Arm Door Closer

The Dorma TS 68 is a compact, cost-effective hydraulic overhead door closer with a standard scissor arm, suitable for most single-leaf internal doors. It features an easily adjustable closing force power size (EN 2, 3, or 4) by simply varying the mounting position and arm shoe template.

Technical Specifications

Specification	Details
Closing Force / Size	EN 2 / 3 / 4 (adjustable by position/templating)
Max Door Leaf Width	Up to 1100 mm
Max Door Weight	Up to 80 kg
Mechanism Type	Rack-and-pinion hydraulic system
Closing Speed Control	2 independent valves ( $180^\circ \text{ to } 15^\circ$ closing, $15^\circ \text{ to } 0^\circ$ latching action)
Dimensions	220 mm (L) × 45 mm (D) × 53.5 mm (H)
Handing	Non-handed (universal for left- and right-opening doors)
Fire Rating	Suitable for up to 120-minute fire doors
Arm Types	Standard scissor arm (Optional mechanical hold-open arm)
